Backup MariaDB via maria-backup

BareOS backs up MariaDB consistently by running maria-backup through the BareOS File Daemon Python plugin. The Director defines Job / FileSet / JobDefs, while the Client installs maria-backup and the plugin.

Server Side (BareOS Director)​

Create FileSet​

Input:

nano /etc/bareos/bareos-dir.d/fileset/client02-maria-backup.conf
FileSet {
  Name = "client02-maria-backup"
  Include {
    Options {
      Signature = XXH128
    }
    Plugin = "python"
             ":module_path=/usr/lib/bareos/plugins"
             ":module_name=bareos-fd-mariabackup"
             ":mycnf=/etc/bareos/maria-backup-my.cnf"
  }
}

This FileSet tells the File Daemon to run the MariaDB backup plugin instead of file-based backups.

Create JobDefs​

Input:

nano /etc/bareos/bareos-dir.d/jobdefs/DailyJob-client02-maria-backup.conf
JobDefs {
  Name = "DailyJob-client02-maria-backup"
  Type = Backup
  Level = Full
  FileSet = "client02-maria-backup"
  Schedule = "DailyCycle"
  Storage = s3
  Messages = Standard
  Pool = longterm-s3-storage
  Priority = 10
  Write Bootstrap = "/var/lib/bareos/%c.bsr"
  Full Backup Pool = Full
  Differential Backup Pool = Differential
  Incremental Backup Pool = Incremental
}

This defines the MariaDB backup policy and storage behavior.

Create Job​

Input:

nano /etc/bareos/bareos-dir.d/job/client02-maria-backup.conf
Job {
  Name = "client02-maria-backup"
  Client = client02
  FileSet = "client02-maria-backup"
  JobDefs = "DailyJob-client02-maria-backup"
  Storage = s3
  Pool = longterm-s3-storage
  Priority = 10
}

This binds the MariaDB FileSet to the client.

Reload Director​

Input:

systemctl restart bareos-dir

This loads the MariaDB backup job into the Director.

Client Side (BareOS File Daemon + MariaDB)​

Detect MariaDB Version​

Input:

mariadb --version

Output:

mariadb  Ver 15.1 Distrib 10.11.6-MariaDB

This confirms MariaDB is installed and compatible with maria-backup.

Install MariaDB Backup Tool​

Input:

apt update && apt install -y maria-backup

This installs the native MariaDB physical backup tool.

Install BareOS MariaDB Backup Plugin​

Input:

apt install -y bareos-filedaemon-mariabackup-python-plugin

This installs the BareOS File Daemon plugin for maria-backup.

Create MariaDB Backup Credentials​

Input:

nano /etc/bareos/maria-backup-my.cnf
[client]
user=bareos_backup
password=StrongPassword
socket=/run/mysqld/mysqld.sock

This file provides credentials used by maria-backup.

Secure Credentials​

Input:

chown bareos:bareos /etc/bareos/maria-backup-my.cnf
chmod 0600 /etc/bareos/maria-backup-my.cnf

This restricts access to the MariaDB credentials.

Configure File Daemon​

Input:

nano /etc/bareos/bareos-fd.d/client/myself.conf
Client {
  Name = client02
  Plugin Directory = "/usr/lib/bareos/plugins"
  Plugin Names = "python3"
}

This enables Python plugins in the File Daemon.

Restart File Daemon​

Input:

systemctl restart bareos-fd

This activates the MariaDB backup plugin.

Verification​

Verify Plugin Availability​

Input:

ls /usr/lib/bareos/plugins | grep maria

Output:

bareos-fd-mariabackup.py

This confirms the MariaDB backup plugin is available.

Run MariaDB Backup Manually​

Input:

bconsole
run job=client02-maria-backup yes

This executes a full MariaDB backup using maria-backup via BareOS.

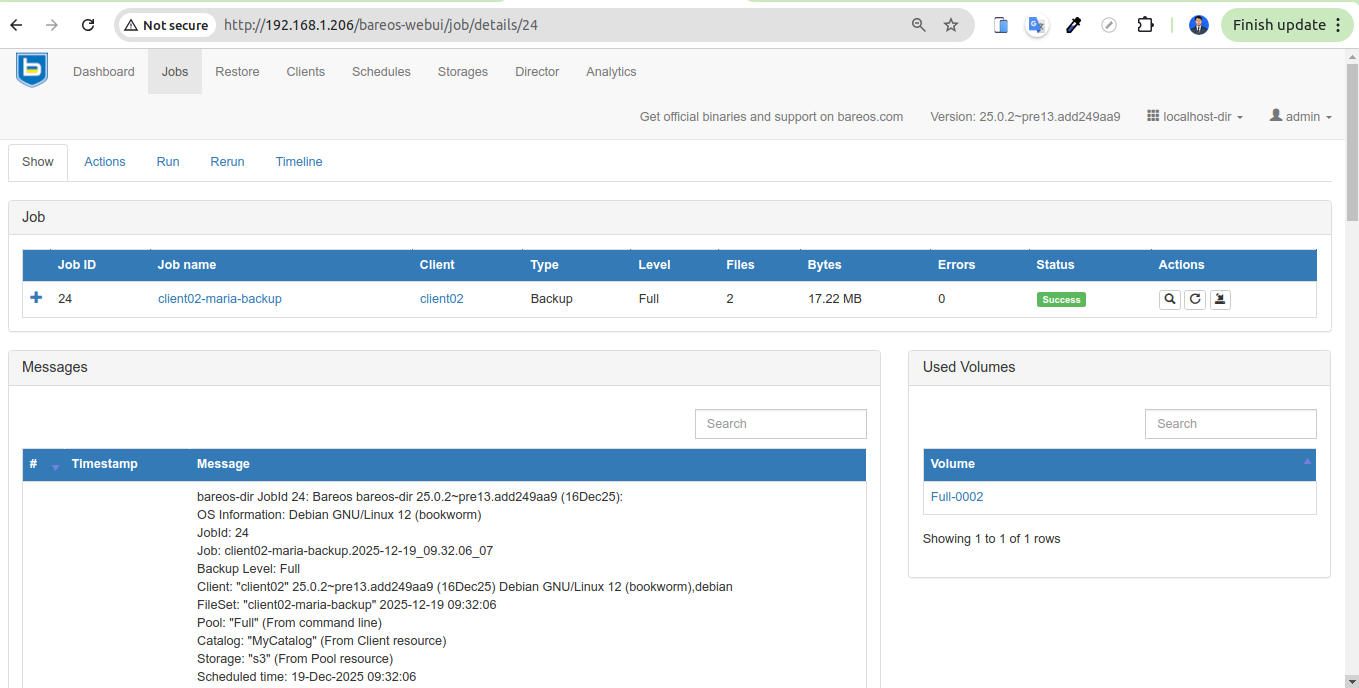

Show Job Details via WebUI​

Bareos Webui MariaBackup
