Bareos WebUI

Bareos WebUI is a PHP web application that connects to bareos-dir using a dedicated Console user and ACL Profile, allowing safe monitoring and control of backup jobs via browser.

---

Components Overview

Component	Role
bareos-webui	PHP WebUI application
apache2	Web server
php-fpm	PHP runtime
bareos-dir	Director service
Console	Auth for WebUI
Profile	ACL permissions

---

Install Required Packages

This installs WebUI, Apache, PHP-FPM, and PHP extensions required by Bareos.

Input:

apt update

Input:

apt install -y bareos-webui apache2 php-fpm php-cli php-curl php-xml php-mbstring php-zip libapache2-mod-fcgid

---

Enable Required Apache Modules

Bareos WebUI relies on rewrite and proxy for PHP-FPM.

Input:

a2enmod rewrite proxy proxy_fcgi env

Input:

a2enconf php8.2-fpm

---

Enable and Start Services

Ensure services persist across reboot.

Input:

systemctl enable --now apache2

Input:

systemctl enable --now php8.2-fpm

---

Create WebUI ACL Profile

The Profile defines what WebUI users can do inside Bareos.

Input:

nano /etc/bareos/bareos-dir.d/profile/webui-admin.conf

Profile {
    Name = webui-admin
    CommandACL = !.bvfs_clear_cache, !.exit, !.sql, !configure, !create, !delete, !purge, !sqlquery, !umount, !unmount, *all*
    Job ACL = *all*
    Schedule ACL = *all*
    Catalog ACL = *all*
    Pool ACL = *all*
    Storage ACL = *all*
    Client ACL = *all*
    FileSet ACL = *all*
    Where ACL = *all*
    Plugin Options ACL = *all*
}

---

Create WebUI Console User

The WebUI authenticates using a Console resource, not an OS user.

Input:

nano /etc/bareos/bareos-dir.d/console/admin.conf

Console {
    Name = "admin"
    Password = "STRONGPASSWORD"
    Profile = "webui-admin"
    TlsEnable = false
}

---

Validate and Restart Bareos Director

Input:

bareos-dir -t

Configuration syntax is valid.

Input:

systemctl restart bareos-dir

---

Configure Apache VirtualHost

Bareos WebUI lives under /bareos-webui.

Input:

nano /etc/apache2/sites-available/bareos-webui.conf

<VirtualHost *:80>
    ServerName example.com

    RewriteEngine On
    RewriteRule ^/?$ /bareos-webui/ [R=302,L]

    Alias /bareos-webui /usr/share/bareos-webui/public

    <Directory /usr/share/bareos-webui/public>
        Options FollowSymLinks
        AllowOverride None
        Require all granted

        RewriteEngine On
        RewriteBase /bareos-webui
        RewriteCond %{REQUEST_FILENAME} -f [OR]
        RewriteCond %{REQUEST_FILENAME} -d
        RewriteRule ^ - [L]
        RewriteRule ^ index.php [L]
    </Directory>
</VirtualHost>

---

Enable Site and Reload Apache

Input:

a2ensite bareos-webui

Input:

apachectl configtest

Output:

Syntax OK

Apache configuration is valid.

Input:

systemctl reload apache2

---

Verify WebUI Files and Permissions

Input:

ls -ld /usr/share/bareos-webui/public

Output:

drwxr-xr-x  bareos bareos  ...

Files are readable by Apache.

---

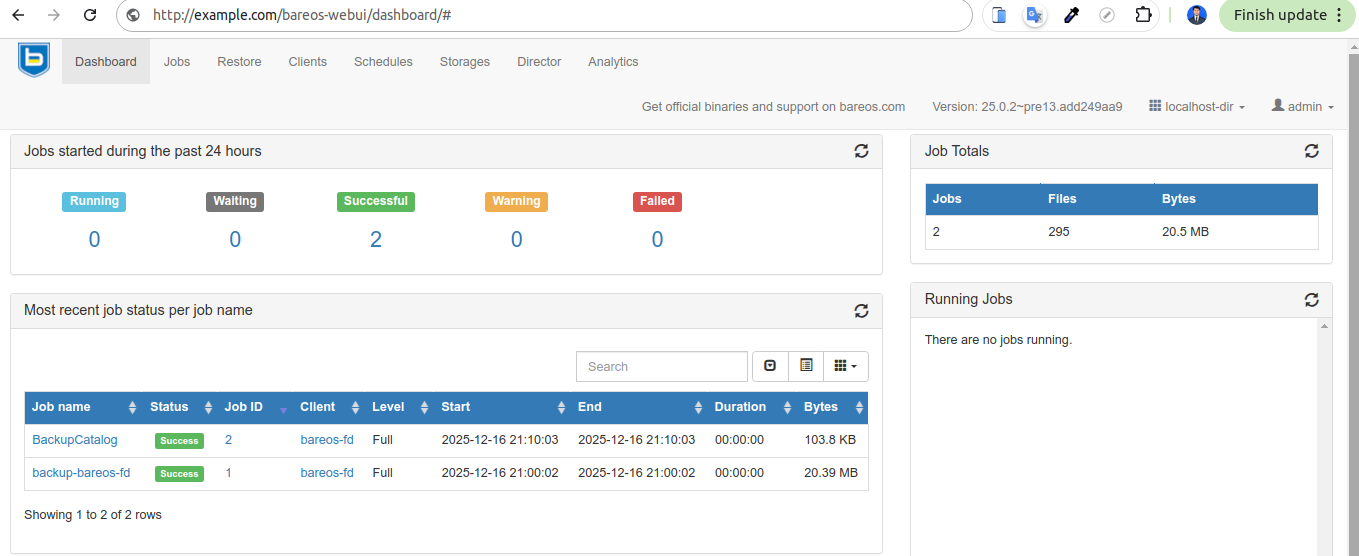

Login to WebUI

Open in browser:

http://example.com/bareos-webui

Field	Value
Username	admin
Password	STRONGPASSWORD

---

Common Troubleshooting Commands

Check Apache errors:

journalctl -u apache2 -e

Check PHP-FPM:

journalctl -u php8.2-fpm -e

Check Bareos authentication:

journalctl -u bareos-dir -e

---
