QinQ
source: Citraweb
What is QinQ

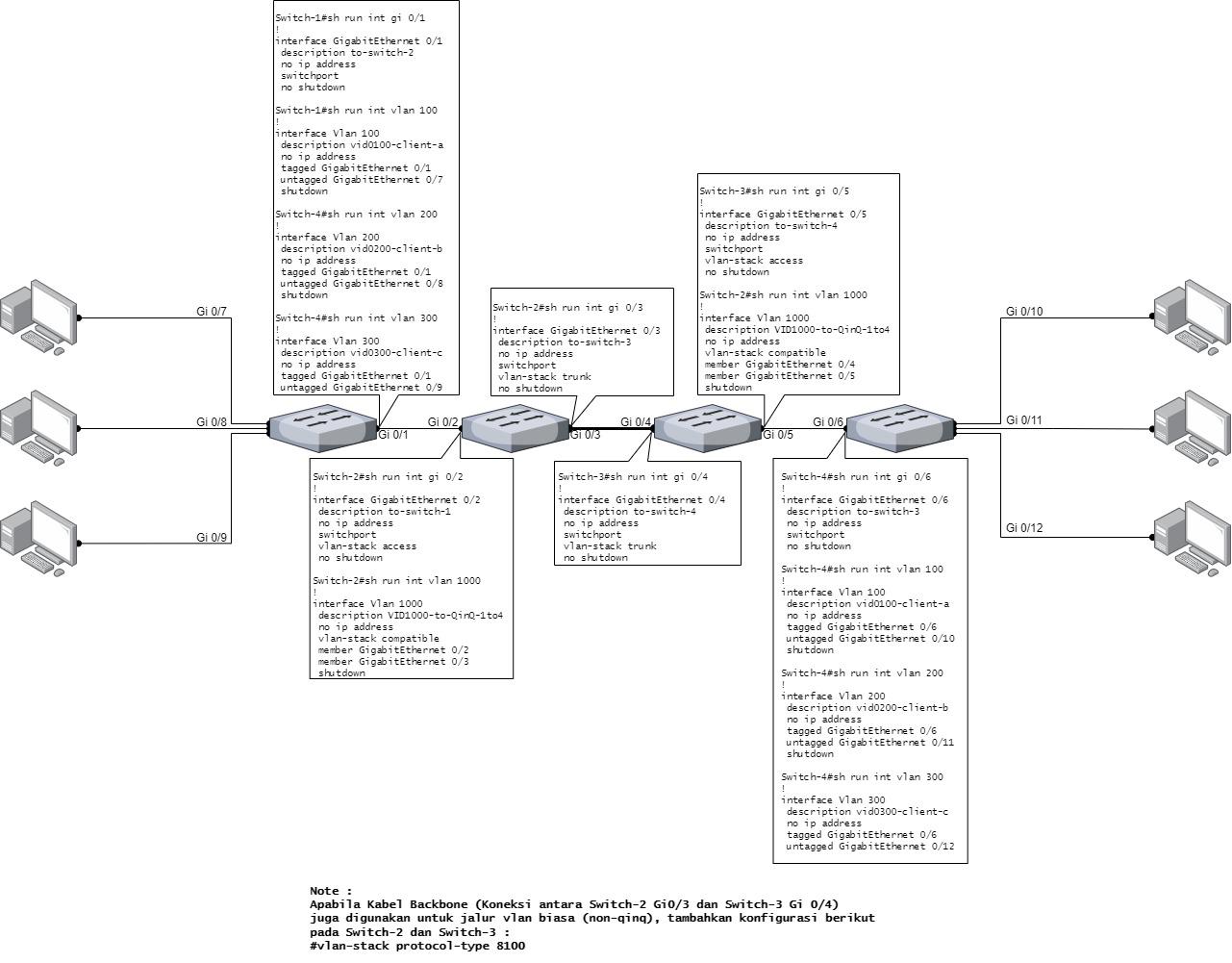

QinQ (802.1ad) is used to encapsulate VLAN (802.1Q), meaning the data packets you send or receive will carry two VLAN headers. Since VLAN itself is an encapsulation process that adds a header to your data packet, QinQ adds another layer. Below is an example of QinQ configuration on a Dell Switch:
QinQ Configuration on Dell Switch

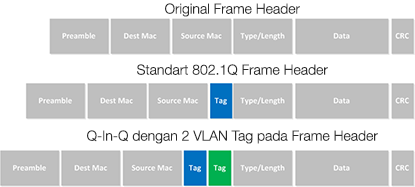

Based on the diagram above, data packets using QinQ have 2 headers, which increases the packet frame size by an additional 4 bytes. The standard MTU size is 1500 bytes, so you must adjust the MTU on interfaces passing QinQ to 1504 bytes or more.
Switch-2 Configuration
Input
sh run int gi 0/2
Output:
!
interface GigabitEthernet 0/2
description to-switch-1
no ip address
switchport
vlan-stack access
no shutdown
Input:
sh run int vlan 1000
Output:
!
interface Vlan 1000
description VID1000-to-QinQ-1to4
no ip address
vlan-stack compatible
member GigabitEthernet 0/2
member GigabitEthernet 0/3
shutdown
Input:
sh run int gi 0/3
Output:
!
interface GigabitEthernet 0/3
description to-switch-3
no ip address
switchport
vlan-stack trunk
no shutdown
Switch-3 Configuration
Input:
sh run int gi 0/5
Output:
!
interface GigabitEthernet 0/5
description to-switch-4
no ip address
switchport
vlan-stack access
no shutdown
Input:
sh run int vlan 1000
Output:
!
interface Vlan 1000
description VID1000-to-QinQ-1to4
no ip address
vlan-stack compatible
member GigabitEthernet 0/4
member GigabitEthernet 0/5
shutdown
Input:
sh run int gi 0/4
Output:
!
interface GigabitEthernet 0/4
description to-switch-4
no ip address
switchport
vlan-stack trunk
no shutdown
From the configuration above, we have created VLAN ID 1000 as the QinQ VLAN and aligned it to the ports connecting to Switch-1 and Switch-4.
Switch-1 Configuration
Now it’s time to create VLANs 100, 200, and 300 on Switch-1 and Switch-4, then forward them to clients and the provider switches, with the following configuration:
Input:
sh run int gi 0/1
Output:
!
interface GigabitEthernet 0/1
description to-switch-2
no ip address
switchport
no shutdown
Input:
sh run int vlan 100
Output:
!
interface Vlan 100
description vid0100-client-a
no ip address
tagged GigabitEthernet 0/1
untagged GigabitEthernet 0/7
shutdown
Input:
sh run int vlan 200
Output:
!
interface Vlan 200
description vid0200-client-b
no ip address
tagged GigabitEthernet 0/1
untagged GigabitEthernet 0/8
shutdown
Input:
sh run int vlan 300
Output:
!
interface Vlan 300
description vid0300-client-c
no ip address
tagged GigabitEthernet 0/1
untagged GigabitEthernet 0/9
Switch-4 Configuration
Input:
sh run int gi 0/6
Output:
!
interface GigabitEthernet 0/6
description to-switch-3
no ip address
switchport
no shutdown
Input:
sh run int vlan 100
Output:
!
interface Vlan 100
description vid0100-client-a
no ip address
tagged GigabitEthernet 0/6
untagged GigabitEthernet 0/10
shutdown
Input:
sh run int vlan 200
Output:
!
interface Vlan 200
description vid0200-client-b
no ip address
tagged GigabitEthernet 0/6
untagged GigabitEthernet 0/11
shutdown
Input:
sh run int vlan 300
Output:
!
interface Vlan 300
description vid0300-client-c
no ip address
tagged GigabitEthernet 0/6
untagged GigabitEthernet 0/12
After completing the configuration, you can test connectivity by pinging between clients, or checking the MAC address table on the provider switches. If the MAC addresses from clients on Switch-1 and Switch-4 appear on the provider switches, the VLAN path is correctly aligned.
